AIR MESH SLAT BAMBOO PANELS

DESCRIPTION

CoreBOO™ Slat Panels provide an extensive selection of customizable slat panel solutions, perfect for interior designers and architects seeking sustainable, high-performance acoustics. Available in SQUARE, FLAT, TALL, and SPECIAL profiles, these panels offer distinct visual and acoustic characteristics.

With five substrate options—OPEN, AIR MESH, FELT, SOLID, and FLEXI—designers can fine-tune their acoustic environment while maintaining a sleek, contemporary aesthetic. Crafted from rapidly renewable bamboo, CoreBOO™ Slat Panels deliver both function and beauty, making them ideal for feature walls, ceilings, and commercial applications.

Installation

Direct Application
Hanging

Customizations

Slat size (width and thickness)
Color (topical stains available – see: Color Option Chart)
“FSC” material available

Environmental Compliance

Made from sustainably harvested, rapidly renewable bamboo (5-year harvesting cycle)
E0 (low-VOC) and NAUF (No Added Urea Formaldehyde) adhesives and coatings
CARB 2 and LEED-Compliant (FSC material available)

Composition

Bamboo – 100% bamboo
Substrate(s): Recycled component aluminum

Finish

Standard product (Dark/Medium/Light) – UV cured water-based urethan
“Stains” – Waco Exterior Oil

Features

SPECIFICATION DOWNLOADS

Care and Maintenance
CSI Specification
Installation Instructions
Material Safety Data Sheet (MSDS)
Warranty

APPLICATION:

All Products, BAMBOO, CoreBOO™, Solid Slat, WALL + CEILING

AIR MESH SLAT BAMBOO PANELS

CoreBOO™ Slat Panels offer a versatile range of sustainable bamboo slat panels, available in multiple profiles and substrates for tailored acoustic and aesthetic performance. Ideal for residential, commercial, and hospitality interiors, these panels combine modern design with high-performance sound absorption.

Data Sheet

Brochure

Installation Instructions

ORDER AIR MESH SLAT BAMBOO PANELS SAMPLES

$10.00

Panel Substrate

Air Mesh

Slat Profile

Flat 30 (Tight)
Flat 40 (Tight)
Flat Mix
Square 20
Square 20 (Tight)
Square 30
Tall 38
Tall 40
Tall 50

Lacquer

Material

Bamboo

Surface Application

Ceiling
Wall

Acoustic Performance

Deflection
NRC 0.10-0.49
NRC 0.50–0.69
NRC 0.70+

Health & Sustainability

FSC Certified
LEED-Contributing
Low VOC
Non-toxic
Rapidly Renewable

Fire-rating

Class A
Class C

Product Profile

3D Panels
Flexible
Slat Panels
Solid

Product Format

Panel

Flexibility

Fully Flexible
Rigid
Slight

Brand

CoreBOO

Clear

Select Slat Profile

The standard CoreBOO Slat Panel profiles each have specific dimensions which are separated by specific spacing.

Square 20 (tight)

Slat Size: 20mm x 20mm (3/4″ x 3/4″) Spacing: 10mm (3/8″)

Square 20

Slat Size: 20mm x 20mm (3/4″ x 3/4″) Spacing: 20mm (3/4″)

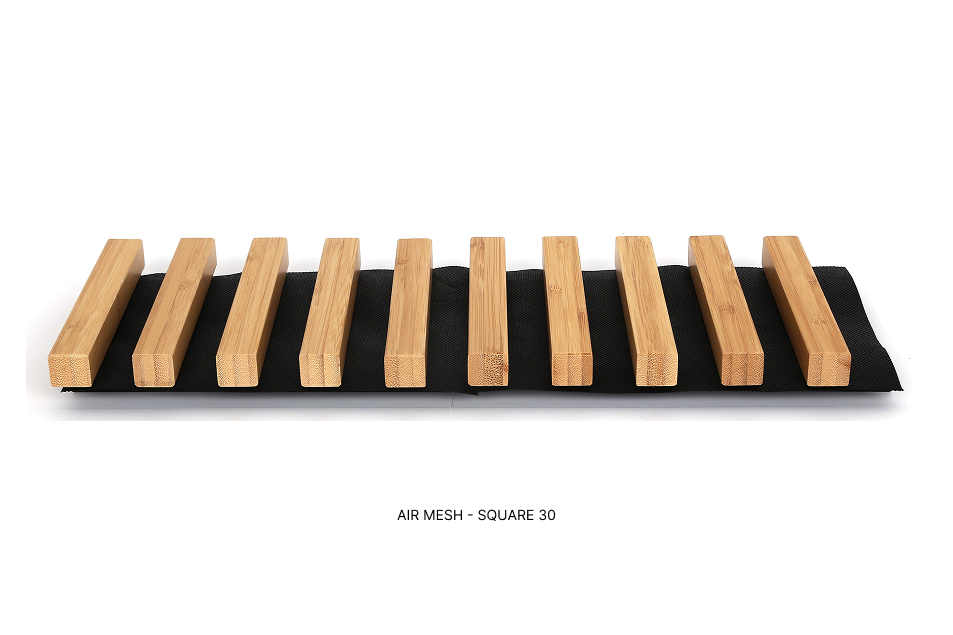

Square 30

Slat Size: 30mm x 30mm (1-1/4″ x 1-1/4″) Spacing: 30mm (1-1/4″)

Flat 30 (tight)

Slat Size: 20mm x 30mm (3/4″ x 1-1/4″) Spacing: 10mm (3/8″)

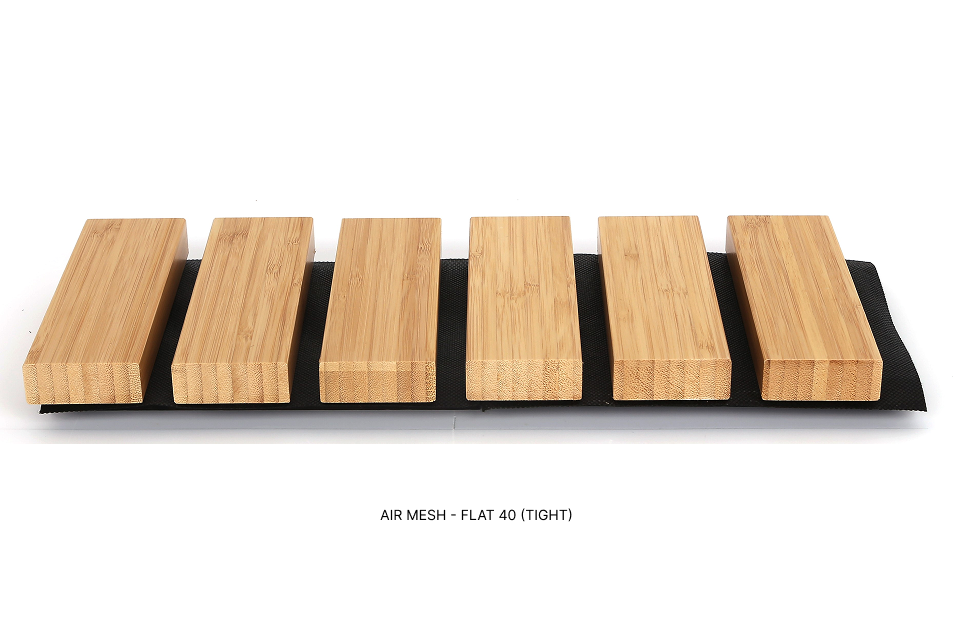

Flat 40 (tight)

Slat Size: 20mm x 40mm (3/4″ x 1-5/8″) Spacing: 10mm (3/8″)

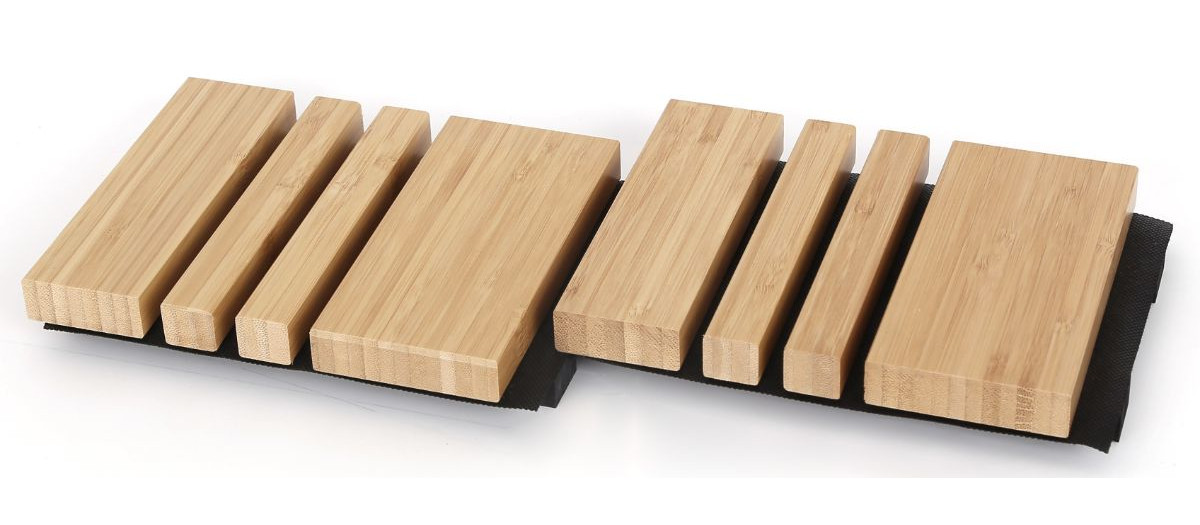

Flat Mix

Slat Size: 20mm x 40|20|20|60mm (3/4″ x 1-5/8″|3/4″|3/4″|2-1/3″) Spacing: 8mm (~1/3″)

Tall 40

Slat Size: 40mm x 20mm (1-5/8″ x 3/4″) Spacing: 20mm (3/4″)

Tall 50

Slat Size: 50mm x 20mm (3/4″ x 2″) Spacing: 20mm (3/4″)

Tall 38

Slat Size: 38mm x 25mm (1-1/2″ x 1″) Spacing: 25mm (1″)

Select Panel Substrate

Any of our Slat Wall can be used with any Slat Wall Profile (standard or customized). The decision is typically driven by the aesthetic design and space parameters, but also the indended use or purpose.
